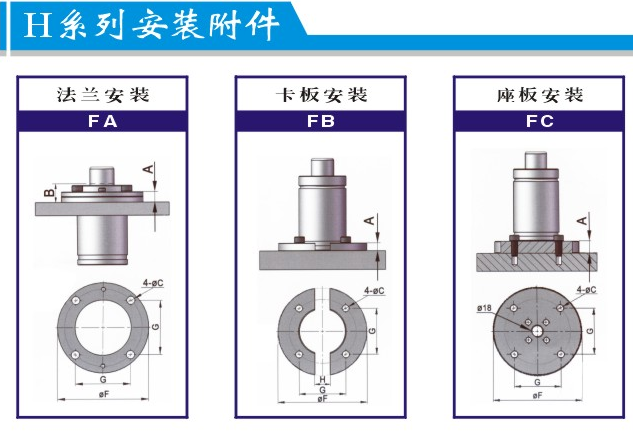

MICKEY品牌氮气弹簧中，结构较紧凑的氮气弹簧属H系列的氮气弹簧，其安装附
件有3种，分别是FA法兰安装附件，FB卡板安装附件，FC座板安装附件，如图：
订货举例：型号H300——FA(附件）
|
型号 |
FA |
FB |
FC | |||||||||||
|
A |
B |
G |
C |
F |
A |
F |
G |
H |
C |
A |
F |
G |
C | |
|
H300 |
9 |
17 |
40 |
7 |
68 |
6.5 |
68 |
40 |
12 |
7 |
|
|
|
|
|
H500 |
13 |
23 |
50 |
9 |
86 |
11 |
86 |
50 |
20 |
9 |
20 |
100 |
50 |
9 |
|
H750 |
13 |
24 |
56.2 |
9 |
95 |
12 |
95 |
56.5 |
24 |
9 |
20 |
105 |
56.5 |
9 |
|
H1000 |
16 |
29 |
73.5 |
11 |
122 |
12 |
122 |
73.5 |
24 |
11 |
20 |
130 |
73.5 |
11 |
|
H1500 |
16 |
29 |
73.5 |
11 |
122 |
12 |
122 |
73.5 |
24 |
11 |
20 |
130 |
73.5 |
11 |
|
H3000 |
18 |
33 |
92 |
13.5 |
150 |
12 |
175 |
92 |
24 |
13.5 |
20 |
155 |
92 |
13.5 |
|
H5000 |
21 |
36 |
109.5 |
13.5 |
175 |
12 |
175 |
109.5 |
24 |
13.5 |
20 |
180 |
109.5 |
13.5 |
|
H7500 |
27 |
41 |
138 |
17.5 |
220 |
12 |
220 |
138 |
24 |
17.5 |
20 |
225 |
138 |
17.5 |
|
H10000 |
27 |
41 |
170 |
17.5 |
265 |
13 |
265 |
170 |
24 |
17.5 |
20 |
265 |
170 |
17.5 |
|
长度单位为mm | ||||||||||||||
